Solar water heater

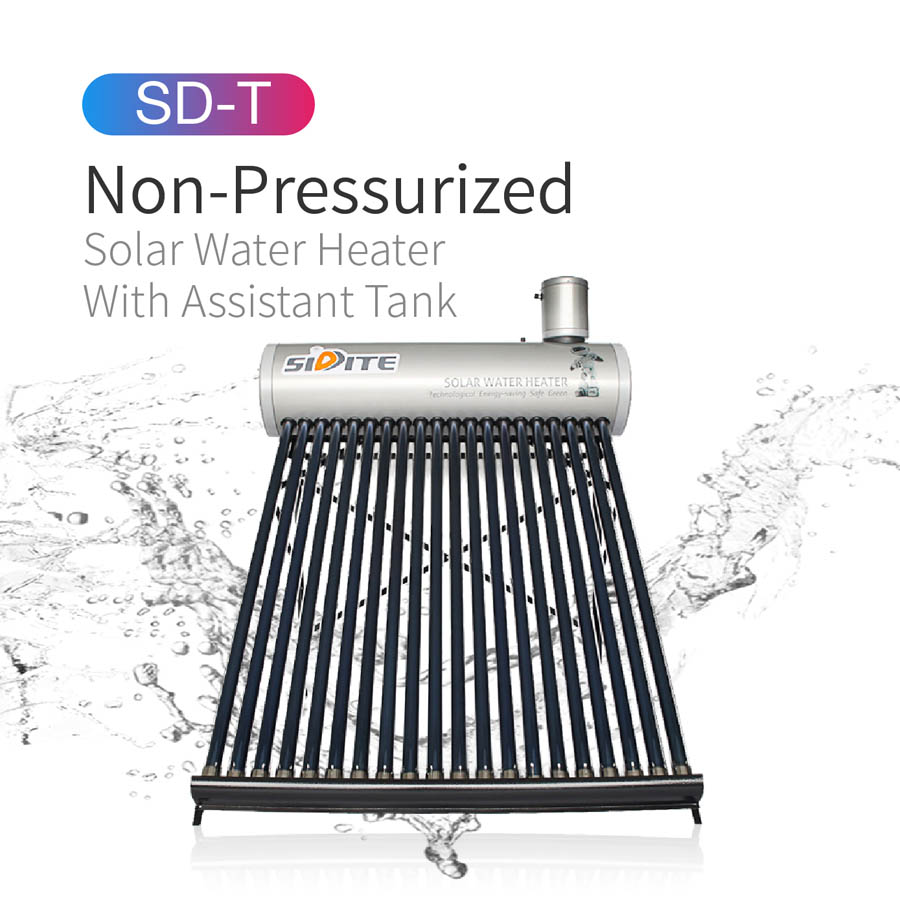

Non-pressurized Solar Water Heater With Assistant Tank

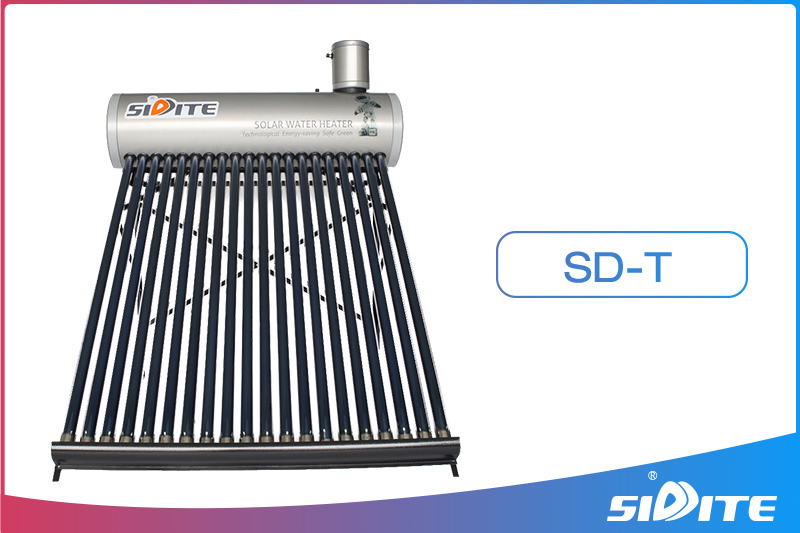

SD-T
It is a non-pressurized solar water heater.
From the outside, it has a assistant tank. With high quality assistant tank and automatic water supply…
Other characteristics and working principle please see below.

Description

Characteristic

1,With high quality assistant tank and automatic water supply.
2,Easy to install for flat roof and pitched roof, auxiliary heating by electrical heater.
3,High pressure polyurethane foaming with thickness 55mm.
4,Stable and reliable performance, well wind resistance.
5,SUS304-2B inner tank, silicon seals.
6,High strength galvanized steel bracket.
7,Eco and economical, improves the environment and save your fuel cost.

Non-Pressure Solar Water Heater

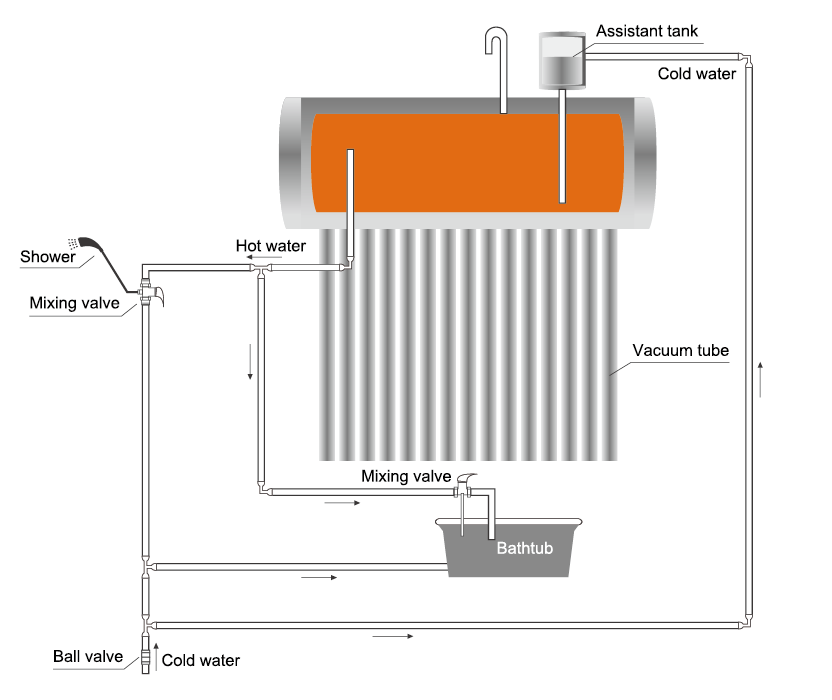

Working Principle

This model operates to feed water automatically.
Using thermosiphon system, depending on the different density between solar hot water and cold water, a water flowing cycle is created in the tubes. Hot water flows automatically upwards while the cold water flows down. The water in the storage tank will be heated from this natural circulation.

Non-Pressure Solar Water Heater

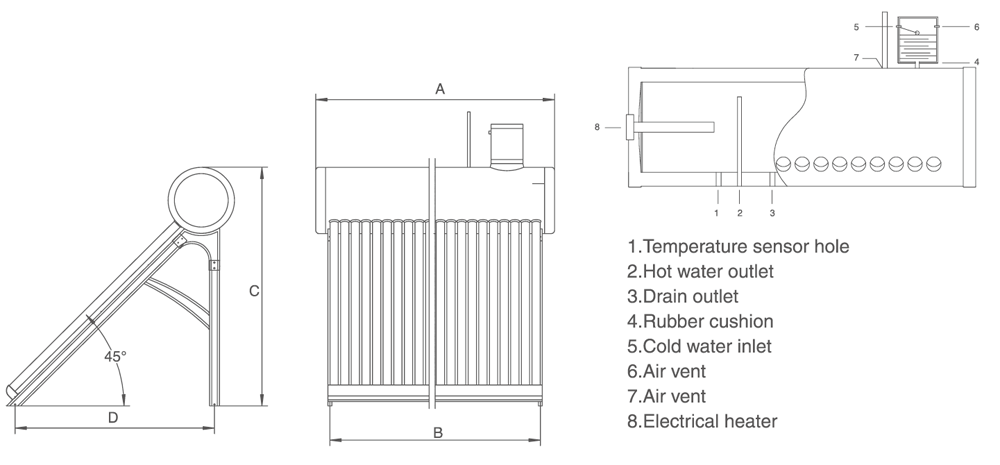

Structure Drawing

Non-Pressure Solar Water Heater

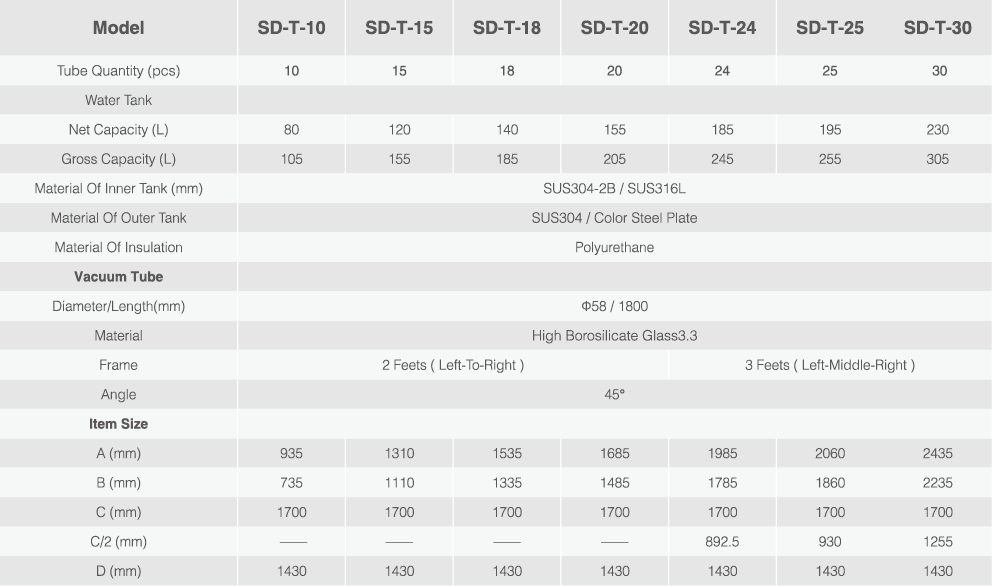

Technical Information

Non-Pressure Solar Water Heater
