Accessories

Pre-Insulated Single Solar Pipes

Our pre-insulated solar pipe is specially designed for solar thermal applications. It is used to connect with solar collectors and storage tanks in a professional way, and making it compatible with modern constructions.

The stainless steel corrugated pipe allows the connection from the collector to the pump unit without any joints. Some of the pipe left from the pump unit can be connected to the tank directly using extra fittings.

Send Inquiry Direct E-Mail: export@sidite.com

Description

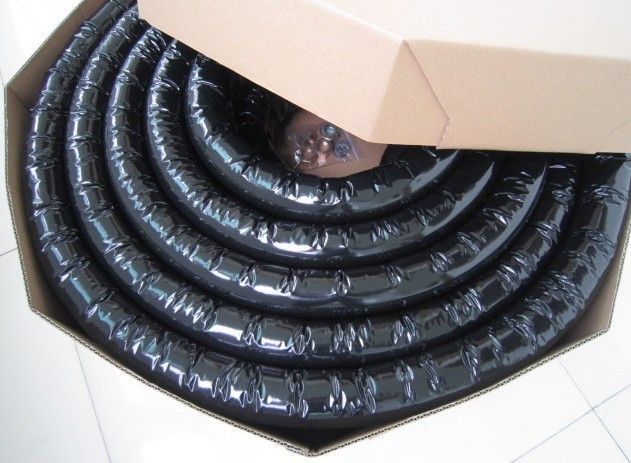

Pre-insulated Flexible Solar Pipe

Introduction:
Our pre-insulated solar pipe is specially designed for solar thermal applications. It is used to connect with solar collectors and storage tanks in a professional way, and making it compatible with modern constructions.

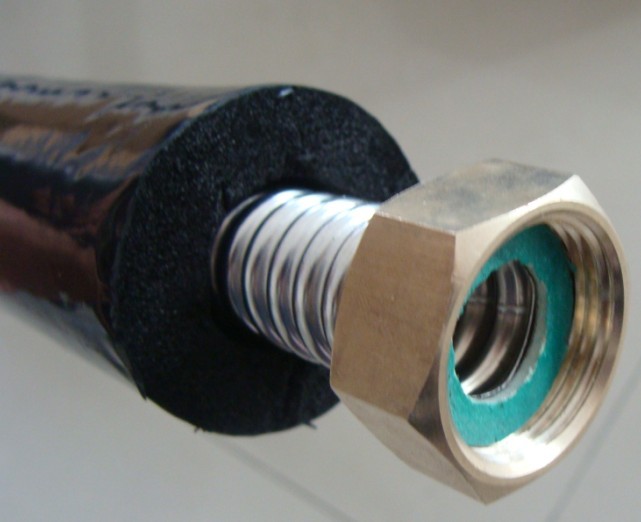

The stainless steel corrugated pipe allows the connection from the collector to the pump unit without any joints. Some of the pipe left from the pump unit can be connected to the tank directly using extra fittings.

Model Number	Size	SS Pipe	EPDM Wall Thickness(mm)	Roll Lengths(m)
AKSG01-12-13/20	DN12(1/2”)	316L	13/20	10,15,20,25,30,50
AKSG01-16-13/20	DN16(3/4”)	316L	13/20	10,15,20,25,30,50
AKSG01-20-13/20	DN20(1”)	316L	13/20	10,15,20,25,30,50
AKSG02-12-13/20	DN12(1/2”)	SUS304	13/20	10,15,20,25,30,50
AKSG02-16-13/20	DN16(3/4”)	SUS304	13/20	10,15,20,25,30,50
AKSG02-20-13/20	DN20(1”)	SUS304	13/20	10,15,20,25,30,50
