Solar water heater

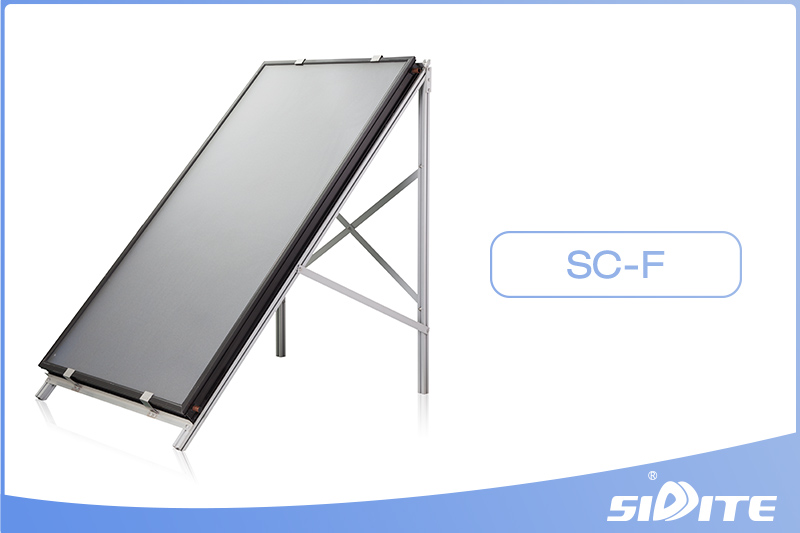

Flat Plate Solar Collector

SC-F
Flat plate solar collector is a device for absorbing solar radiation and transferring heat to the medium, which is a kind of special heat exchanger, the medium in the collector heat exchanges with the sun. Flat plate solar collector is composed of absorbing plate core, shell, transparent cover plate, insulation materials and other related parts. Then heating circulation pipe and water tank, become a absorbing solar radiation equipment to heat the cold water.

Description

Characteristic

1,High selective blue/black chrome coating applied for the absorber.
2,Laser welding between full aluminum absorber and copper tubes ensure good conductivity of heat and firm structure.
3,Tempered textured glass with high transmittance up to 92%.
4,Super large effective heat absorption area offers high heating efficiency and more energy saving.
5,Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested etc.
6,25 years life span with max 0.8Mpa pressure.

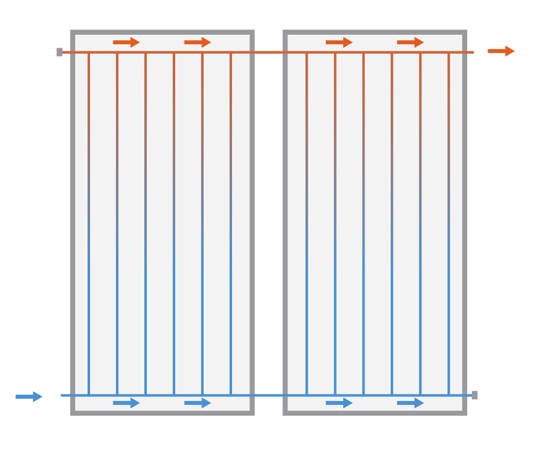

Working Principle

Flat plate solar collector is a device for absorbing solar radiation and transferring heat to the medium, which is a kind of special heat exchanger, the medium in the collector heat exchanges with the sun. Flat plate solar collector is composed of absorbing plate core, shell, transparent cover plate, insulation materials and the related parts. Then heating circulation pipe and water tank, become a absorbing solar radiation equipment to heat the cold water.

Flat plate solar thermal collectors

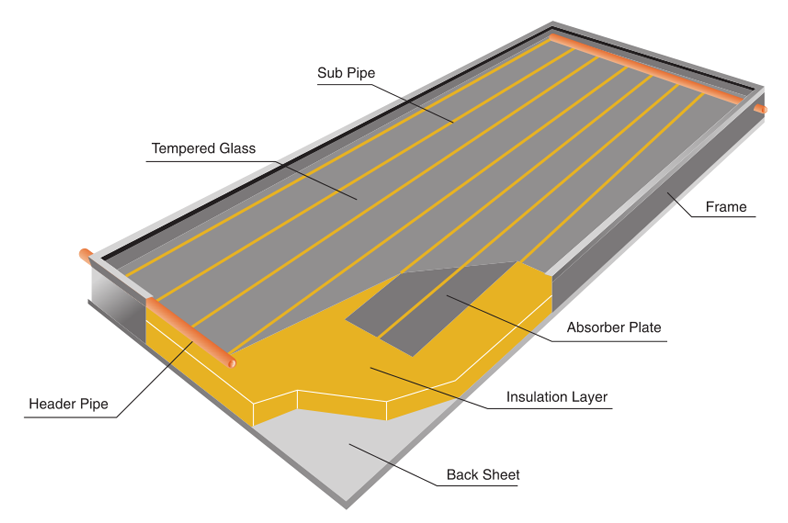

Structure Drawing

Flat plate solar thermal collectors

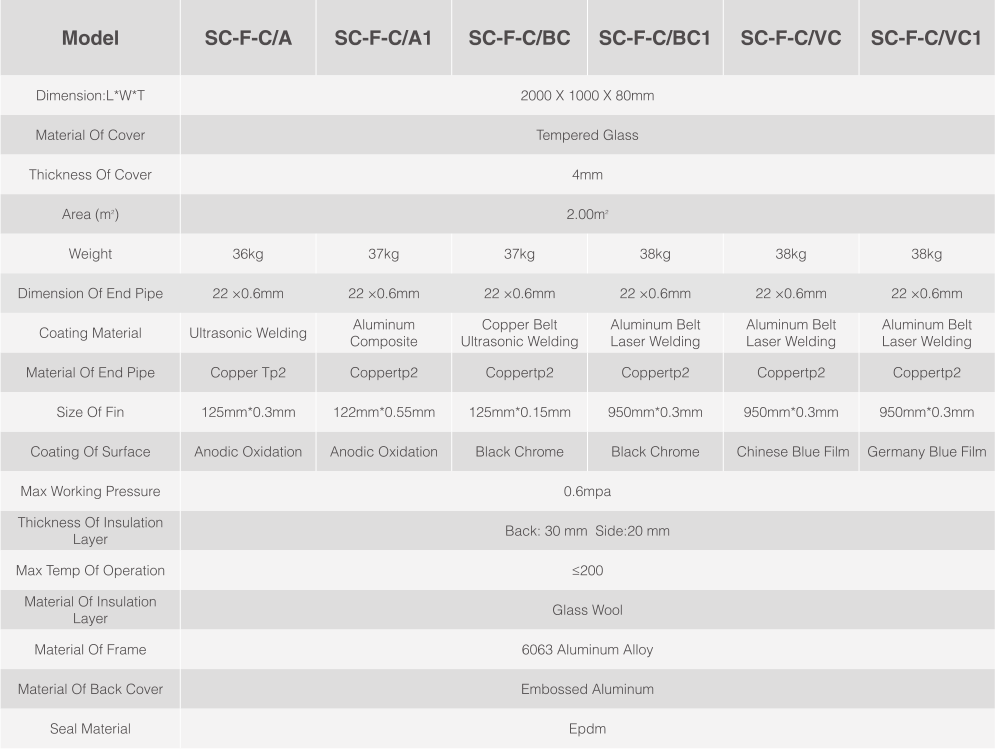

Technical Information

Flat plate solar thermal collectors
