Characteristic

1.Thermosiphon direct system, easy piping work, higher efficiency.
2.Intelligent control, automatic water filling.
3.Reliable electric back-up with protection against dry heating and thermal cut-out.
4.Pressurized water tank with SUS304-2B inner tank, good at anti-corrosion.
5.Operation under pressure to ensure comfortable shower water.
6.Polyurethane layer foaming insulation for keeping temperature of water.
7.Totally copper flow channels achieve low defect rate and easy maintenance, long service life.

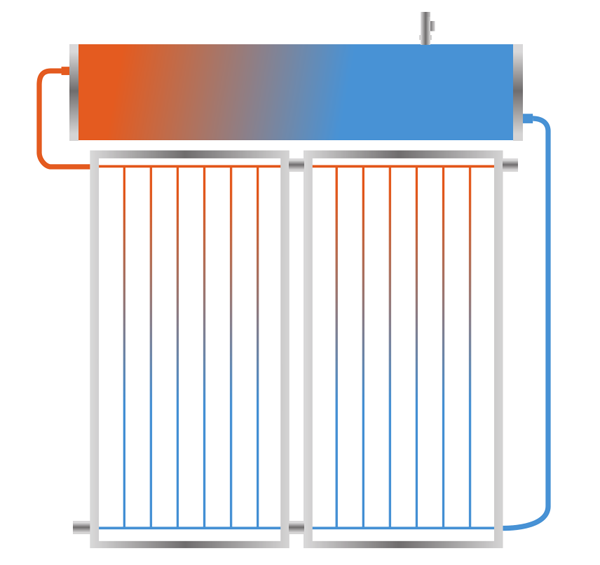

Working Principle

Under normal operating conditions the potable water within the potable storage tank is heated by the solar collectors. For example, in an close circuit system where the household hot water is in the collector circuit, cold water is pushed downwards via the long external pipe from the storage tank to the bottom of the solar collector. As the water is heated in the absorber by the sun, it rises to the top of the collector then travels through the short external pipe into the storage tank.

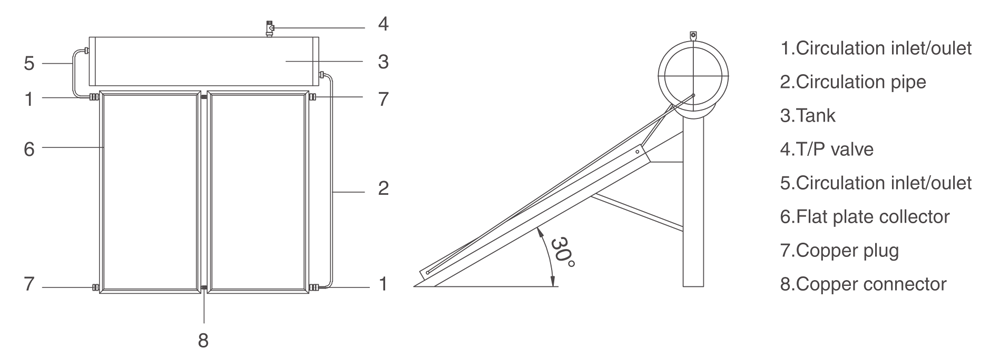

Structure Drawing

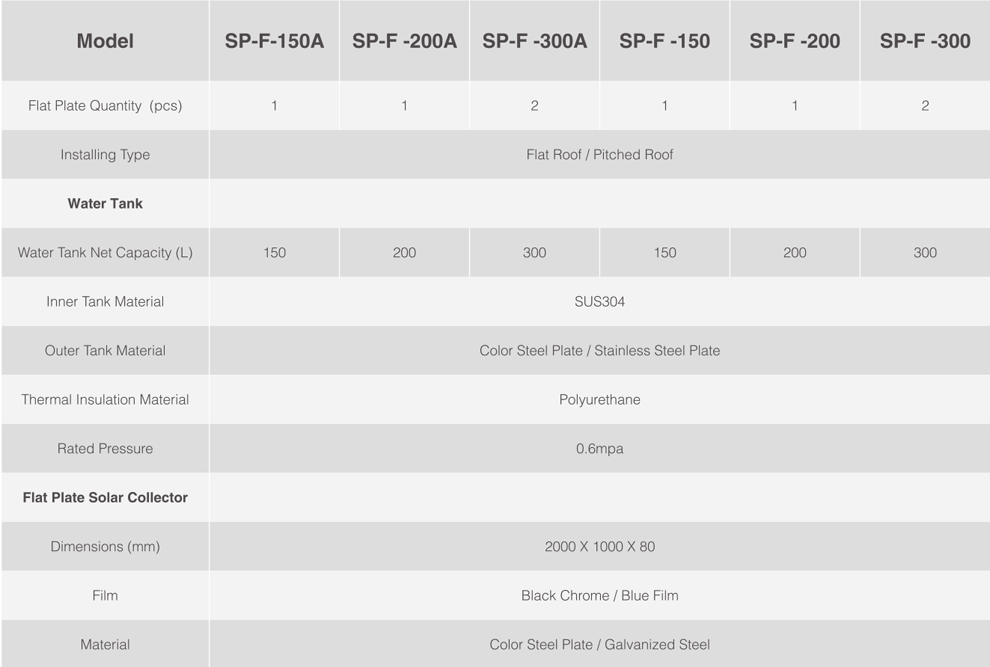

Technical Information
