Solar power system
|

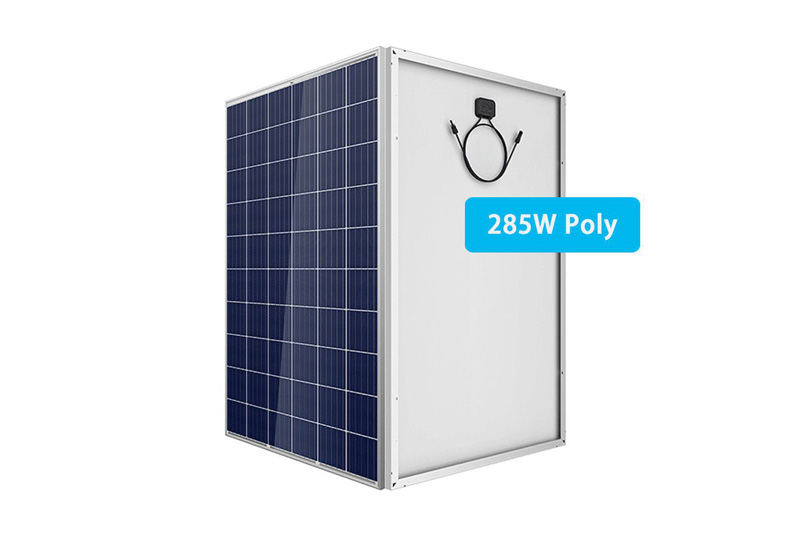

285W poly solar panel popular with 158.75 60cells
285W Poly
Power: 285W
Solar Cell: Poly cells
Power Tolerance: 0~5w
Weight: 18.5kg
Dimensions: 1665*1002*40/35mm
Warranty: 10 years
Delivery Time: 10-15 days
Shipping Port: Shanghai/Ningbo sea port
Payment Term: T/T and L/C at sight payment mode is good.
Solar Cell: Poly cells
Power Tolerance: 0~5w
Weight: 18.5kg
Dimensions: 1665*1002*40/35mm
Warranty: 10 years
Delivery Time: 10-15 days
Shipping Port: Shanghai/Ningbo sea port
Payment Term: T/T and L/C at sight payment mode is good.
Description
Solar Panel Data Sheet
Description of Specification | Configuration | Units | Model |
NES60-6-285P | |||
General Data | |||
Maximum Power | Pm(W) | Watts | 285W |
Watt Tolerance | - | Watts | 0-5 |
Storage & Operating Temperature | - | Deg .C | -45~85 |
Voltage & Ampereage | |||
Maximum System Voltage | - | Volts | 1000VDC |
Maximum Operating Voltage | Vmp | Volts | 31.43 |
Maximum Operating Current | Imp | Amps | 9.07 |
Open Circuit Voltage | Voc | Volts | 38.69 |
Short Circuit Current | Isc | Amps | 9.53 |
Solar Cell | |||
Cell Type | - | - | Polycrystalline cells |
Number of Cells | In Series | - | 60(10*6) |
Warranty | |||
Manufacturing | - | Years | 10 |
Dimensions & Weight | |||
Dimensions: Length×Width×Height | - | mm | 1665×1002×40/35 |
Weight | - | kg | 18.5 |

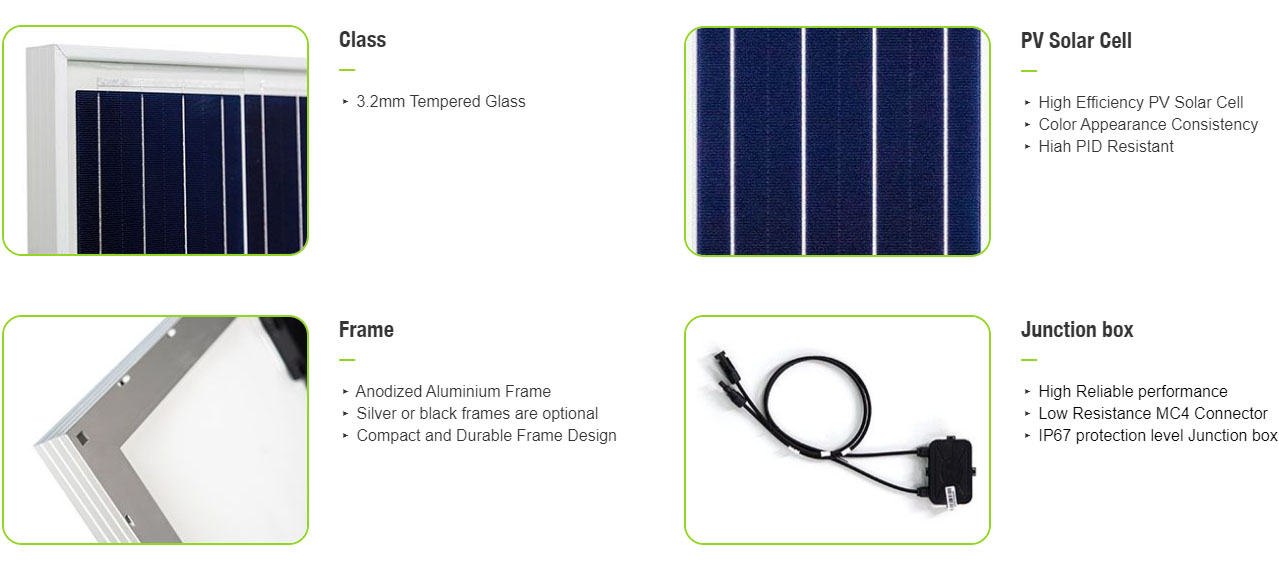

Product Feature
