Solar power system
|
|

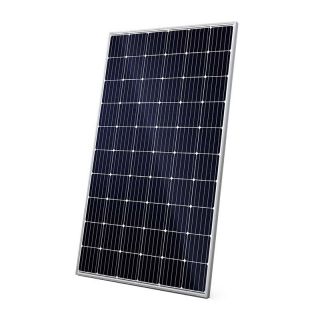

320W monocrystalline solar panel with warranty from China

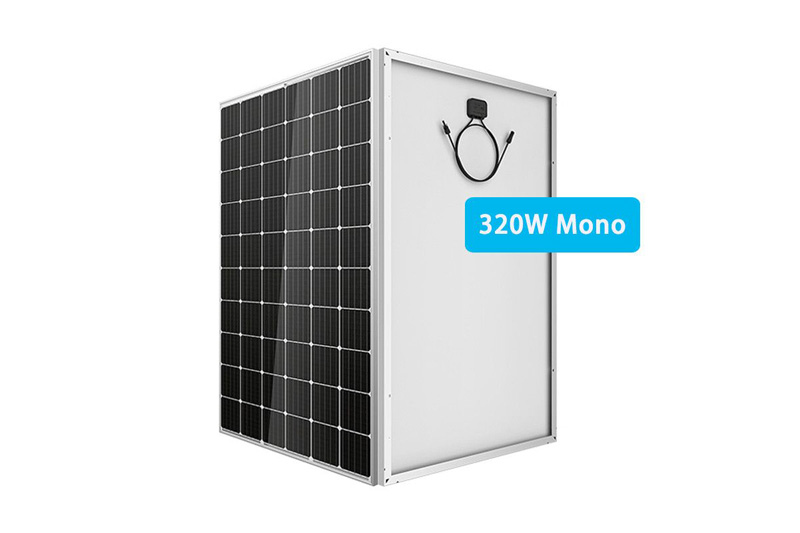

320W Mono
Power: 320W
Solar Cell: Mono cells
Power Tolerance: 0~5w
Weight: 18kg
Dimensions: 1640*992*40/35mm
Warranty: 10 years
Delivery Time: 10-15 days
Shipping Port: Shanghai/Ningbo sea port
Payment Term: Telegraphic Transfer and letter of credit payment term is ok. We can quote you with EXW/FOB/ CIF/ CFR.
Solar Cell: Mono cells
Power Tolerance: 0~5w
Weight: 18kg
Dimensions: 1640*992*40/35mm
Warranty: 10 years
Delivery Time: 10-15 days
Shipping Port: Shanghai/Ningbo sea port
Payment Term: Telegraphic Transfer and letter of credit payment term is ok. We can quote you with EXW/FOB/ CIF/ CFR.
Description
Solar Panel Data Sheet
Description of Specification | Configuration | Units | Model |
NES60-6-320M | |||
General Data | |||
Maximum Power | Pm(W) | Watts | 320W |
Watt Tolerance | - | Watts | 0-5 |
Storage & Operating Temperature | - | Deg .C | -45~85 |
Voltage & Ampereage | |||
Maximum System Voltage | - | Volts | 1000VDC |
Maximum Operating Voltage | Vmp | Volts | 33.17 |
Maximum Operating Current | Imp | Amps | 9.65 |
Open Circuit Voltage | Voc | Volts | 40.78 |
Short Circuit Current | Isc | Amps | 10.18 |
Solar Cell | |||
Cell Type | - | - | Monocrystalline cells |
Number of Cells | In Series | - | 60(10*6) |
Warranty | |||
Manufacturing | - | Years | 10 |
Dimensions & Weight | |||
Dimensions: Length×Width×Height | - | mm | 1640×992×40/35 |
Weight | - | kg | 18 |
Product Feature
